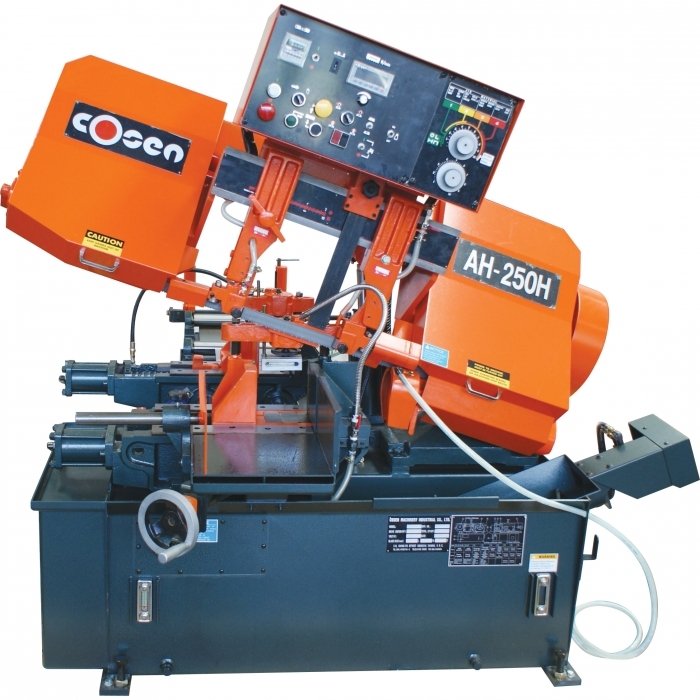

Automatic Hitch Feed Metal Cutting Band Saw - AH-250H

280 x 250mm (W x H) Rectangle Capacity

B040 1 of 18

Control Panel 2 of 18

Hydraulic Blade Tension Device with Gauge 3 of 18

Ball Bearing Blade Guides with Carbide Pads 4 of 18

Wire Wheel Blade cleaning Brush 5 of 18

Hydraulic Hitch Feed System 6 of 18

Bundle Cutting Clamp 7 of 18

Hydraulic Driven Swarf Conveyor 8 of 18

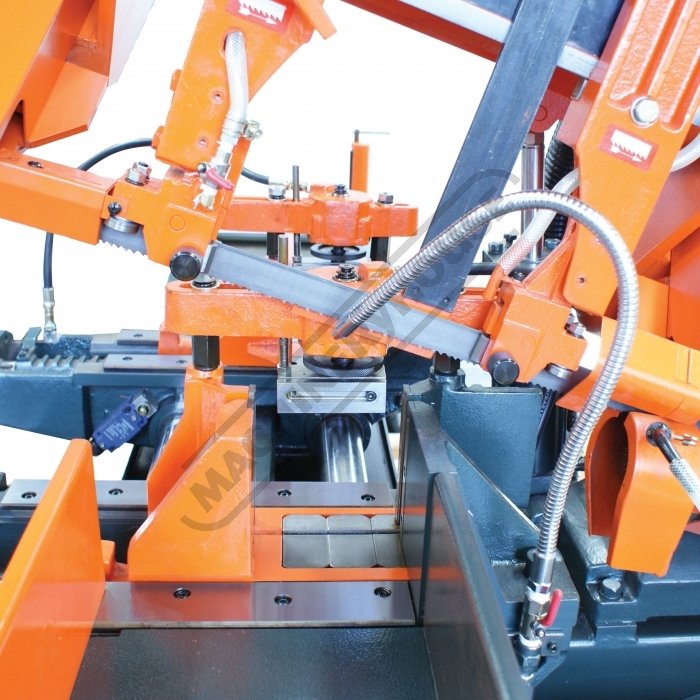

Rapid Approach Material Sensor 9 of 18

Cut Length Measuring System 10 of 18

Heavy Duty Gearbox Drive System 11 of 18

Quick Action Vice on Rack Type System 12 of 18

Work Light Direct Above Cutting Area 13 of 18

Hydraulic Oil Level Gauge 14 of 18

Hydraulic Blade Tension Device Side View 15 of 18

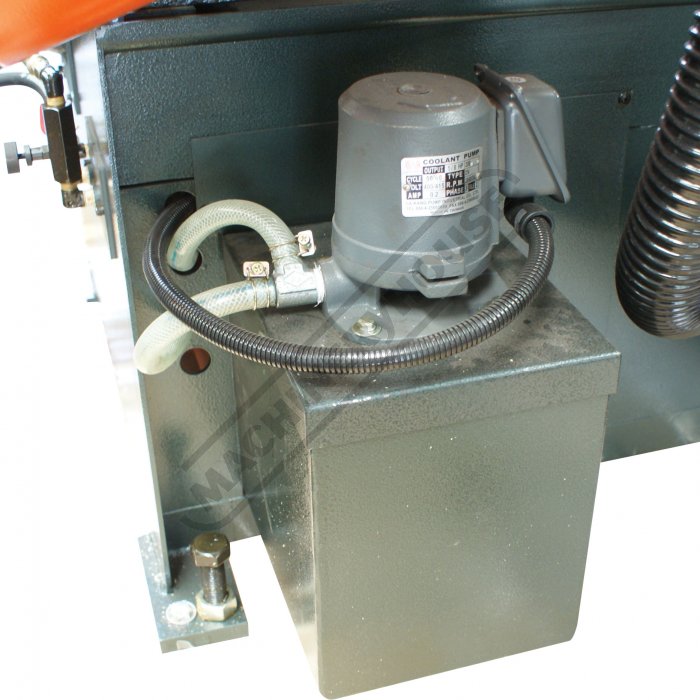

Coolant Pump-Tank 16 of 18

Rear View 17 of 18

Bundle Cutting 18 of 18

Discontinued

Order Code: B040

415V / (NO PLUG)
1 Year Warranty

Made in Taiwan

Compare

Wishlist

Description

280 x 250mm (W x H) Rectangle Capacity

Manufactured in Taiwan

Automatic, hitch feed operation

Programmable logic control (P.L.C.) control, for all electric and hydraulic functions enables this machine to be set up for production cutting
Hydraulic clamping vice with hitch type automatic feed system
Back-tilted saw frame for longer blade life
Pre-set digital counter and out of stock cut out
Automatic work height control and rapid approach
Carbide and ball bearing blade guides provides superior accuracy and reduce friction for longer blade life
Multiple indexing capabilities up to 9 times
Proximity switch for sensing blade slippage or breakage
Bundle and single cutting mode switch includes bundle cutting clamps ( Nesting fixture )
Synchronised power driven blade cleaning brush
Precision feed pressure & feed rate dual valve system for optimal performance in any material
Inverter controlled infinitely variable blade speed 20-100mpm
Hydraulic swarf conveyor directs excess waste to side of machine
Digital blade speed readout
Split vice jaws featuring automatic feeding down to remnant length of 50mm
Blade breakage sensor protection device via a proximity switch to shut machine off
Automatic hydraulic blade tensioning system ensures correct blade tension
Hydraulic swarf conveyor directs excess waste to rear of machine
Dual valve design with pre-selective cutting pressure controls
Hydraulic nesting fixture for bundle cutting
Coolant system incorporation a wash down hose with trigger gun

Specifications

ORDER CODE	B040
MODEL	AH-250H
Operation Type	Fixed Head Automatic Hitch Feed
(mm)Round @ 90º	250
(mm)Square @ 90º	250
(mm)Rectangle (W x H) @ 90º	280 x 250
Coolant System	Yes
(mm)Table Working Height	650
Cutting Head Beam Type	Fully-Automatic
Cutting Head Beam Return	Auto-Hydraulic Return
Cutting Head Down Feed Control	Adjustable Hydraulic
Vice Clamping Fixture	Automatic-Hydraulic
Bundle Cutting Fixture	Yes
(M/Min)Blade Steps / Speeds	Variable 20-100
(mm)Blade Size (L x W x T)	3505 x 34 x 1.1
(kW / hp)Motor Power	2.25 / 3
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	1600
