HAFCO METALMASTERBS-13HS

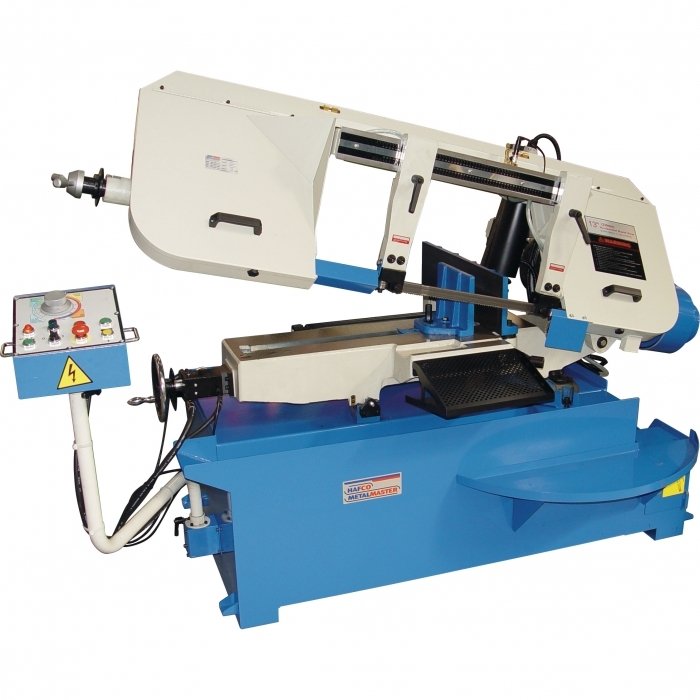

Semi - Automatic Swivel Head Metal Cutting Band Saw
  • 1 of 8
    B033
  • 2 of 8
    Blade Breakage
  • 3 of 8
    Blade Breakage Rear
  • 4 of 8
    Controller
  • 5 of 8
    Hydraulic Vice Rear
  • 6 of 8
    Rear Hydraulic System
  • 7 of 8
    Variable Speed
  • 8 of 8
    Laserlight
Order Code: B033
BS-13HS - Semi - Automatic Swivel Head Metal Cutting Band Saw (415V)
530 x 225mm (W x H) Rectangle Capacity
HAFCO METALMASTER
ORDER CODE
B033
Model
BS-13HS
Operation Type
Swivel Head
Cutting Head Beam Type
Semi-Automatic
Cutting Head Beam Return
Auto-Hydraulic Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Round @ 90º
330mm
Round @ 45º
300mm
Square @ 90º
330mm
Square @ 45º
300mm
Rectangle (W x H) @ 90º
530 x 225mm
Rectangle (W x H) @ 45º
415 x 300mm
Vice Clamping Fixture
Automatic-Hydraulic
Coolant System
Table Working Height
780mm
Blade Steps / Speeds
Variable 20-80 M/min
Blade Size (L x W x T)
4100 x 34 x 1.1mm
Motor Power
2.25kW / 3hp
Voltage
415V
Weight (nett)
750kg
Description
BS-13HS SWIVEL HEAD METAL CUTTING BAND SAW (415V)

The BS-13HS Industrial duty metal cutting band saw has many features on offer with a swivel head to cut mitres up to 45 degrees, 4 blade speed system, hydraulic feed control a cutting capacity of up to 330mm diameter or 530 x 225mm in steel at 90º and three ball bearings per side with carbide blade guides for optimal control and accuracy. There is a choice of blade speeds via an adjustable pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliability and accurate cuts!

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and industrial engineering workshops. . If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting band saw with these features and at this price, It represents excellent value.
Features
  • 530 x 225mm (W x H) rectangular capacity
  • Swivel head for easy angle cutting without moving material
  • Semi-automatic operation, machine returns to open height position after finishing the cutting process
  • Automatic hydraulic vice incorporated with a manual hand wheel
  • Hydraulic operated system raising and lowering the cutting beam
  • Adjustable hydraulic feed cutting rate for multiple applications
  • Blade breakage sensor fitted that automatically shuts machine off
  • Mitre cuts to 45º using swivel head
  • Built-in coolant system for maximum cutting efficiency
  • Laser line guide assist in lining up material positioning
  • Adjustable variable blade speed system enabling 20-80mpm cutting speeds
  • Limit switch stops machine and raises cutting beam when cut is complete
  • Swivelling electric control panel mounted on base for quick operation
  • Combination roller bearing & Carbide blade guides
  • Heavy duty cast Iron blade wheels
  • Large mitre scale - easy to read
  • Cast Iron frame with heavy duty fabricated base
  • Adjustable blade roller guides provides accurate cutting
  • Adjustable length stop for repetition cutting
  • Wire wheel brush to clean swarf from blade
  • Industrial-duty gearbox drive
  • Industrial-duty 2.25kW / 3hp 415V motor
  • Industrial duty machine sold for many years

Product Brochure

Instruction Manual
2.98 MB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
