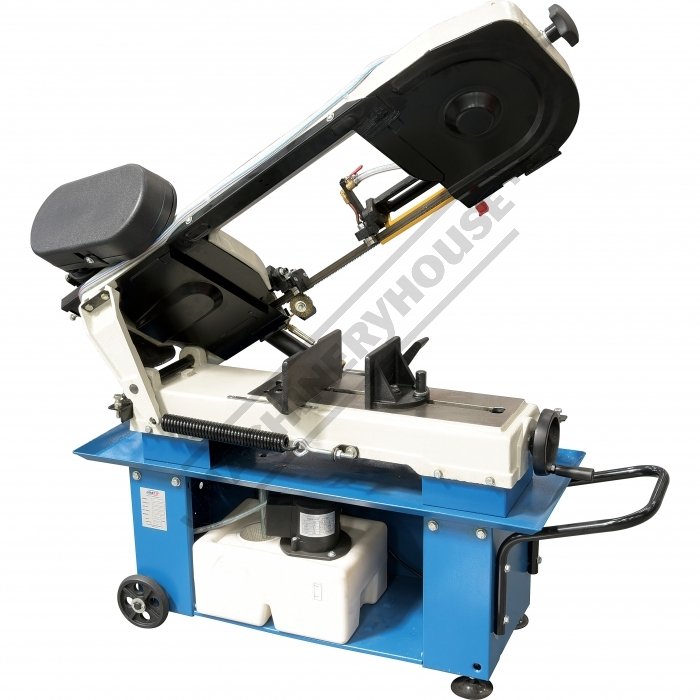

HAFCO METALMASTERBS-7L
Metal Cutting Band Saw
  • 1 of 6
    B006
  • 2 of 6
    Hydraulic Ram Down Feed Control
  • 3 of 6
    Speed Chart
  • 4 of 6
    Coolant System
  • 5 of 6
    Blade Guide
  • 6 of 6
    Down Feed Control
Order Code: B006
BS-7L - Metal Cutting Band Saw (240V)
305 x 178mm (W x H) Rectangle Capacity
HAFCO METALMASTER
ORDER CODE
B006
Model
BS-7L
Operation Type
Fixed Head
Cutting Head Beam Type
Manual
Cutting Head Beam Return
Manual Return
Cutting Head Down Feed Control
Adjustable Hydraulic
Round @ 90º
178mm
Round @ 45º
127mm
Square @ 90º
178mm
Square @ 45º
115mm
Rectangle (W x H) @ 90º
305 x 178mm
Rectangle (W x H) @ 45º
120 x 115mm
Vice Clamping Fixture
Manual
Coolant System
Table Working Height
550mm
Blade Steps / Speeds
22-34-49-64 M/min
Blade Size (L x W x T)
2362 x 19 x 0.8mm
Motor Power
0.75kW / 1hp
Voltage
240V
Weight (nett)
153kg
Description
The BS-7L medium duty metal cutting band saw has many features on offer with a capacity of up to 178mm diameter or 305 x 178mm in steel. There is a choice of four blade speeds via an adjustable 4 stage pulley system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and long blade life.

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, medium steel fabrications, and engineering workshops.
Features
  • 305 x 178mm (W x H) rectangular capacity
  • Adjustable hydraulic feed cutting rate for multiple applications
  • Mitre cuts to 45º using calibrated vice
  • Built-in coolant system for maximum cutting efficiency
  • Limit switch stops machine when cut is complete
  • Adjustable blade roller guides provides accurate cutting
  • Adjustable 4-speed pulley drive system enabling 22-34-49-64mpm cutting speeds
  • Adjustable length stop for repetition cutting
  • Coolant system with flow control valve
  • Wire wheel brush to clean swarf from blade
  • Portable - on wheels for ease of use
  • Vertical cutting table included
  • Automatic electric cut-out switch
  • Heavy-duty 0.75kW 1hp 240V fully enclosed fan-cooled motor
Product Brochure

Trouble Shooting Guide
330.4 KB
Blade Selection Chart
381.95 KB
Instruction Manual
7.43 MB
Enter your postcode to estimate the delivery fee for this product.
Postcode:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • BS-7L (B006)
ORDER CODE
Model
Operation Type
Cutting Head Beam Type
Cutting Head Beam Return
Cutting Head Down Feed Control
Round @ 90º
Round @ 45º
Round @ 60º
Square @ 90º
Square @ 45º
Square @ 60º
Rectangle (W x H) @ 90º
Rectangle (W x H) @ 45º
Rectangle (W x H) @ 60º
Vice Clamping Fixture
Bundle Cutting Fixture
Coolant System
Table Working Height
Blade Steps / Speeds
Blade Size (L x W x T)
Motor Power
Voltage
Weight (nett)
Price (ex GST)
Price (inc GST)

Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
Parts list
3.5 MB
