HAFCOTCS-450
Swivel Crane -Truck or Ute
  • 1 of 21
    A353
  • 2 of 21

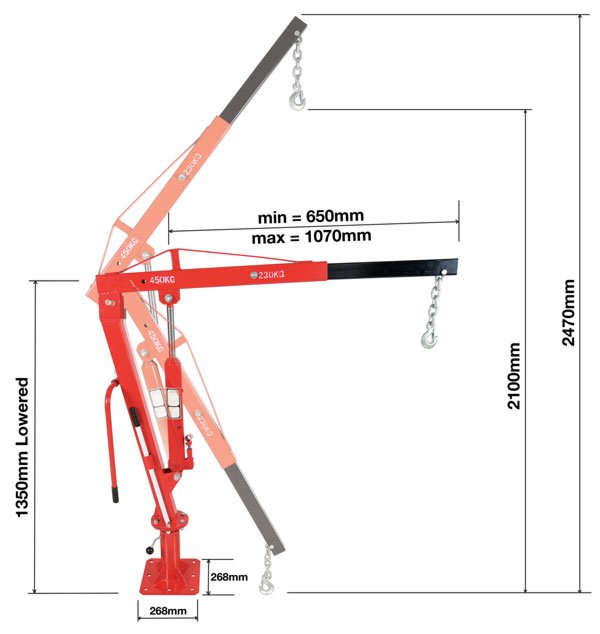

    Overview
  • 3 of 21

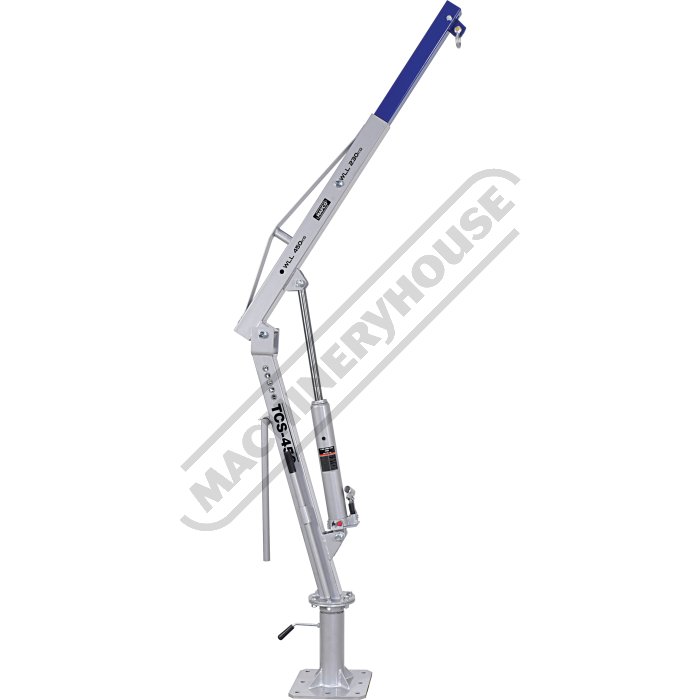

    Fully Raised Boom
  • 4 of 21

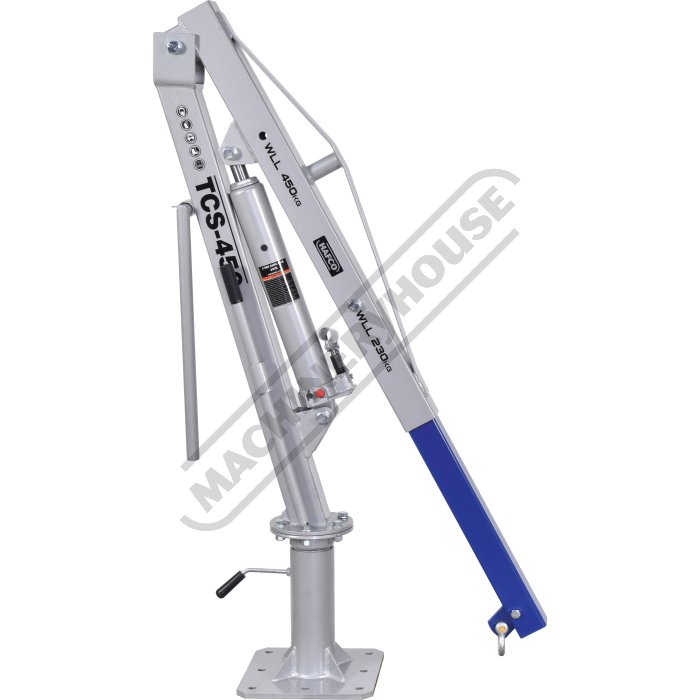

    Fully Lowered Boom
  • 5 of 21
    Compact Fold Design
  • 6 of 21
    Telescopic Boom at 230kg Position
  • 7 of 21
    Telescopic Boom at 450kg Position
  • 8 of 21
    Boom Position Bolt
  • 9 of 21
    Rear View
  • 10 of 21
    360 Degrees Continuous Rotation
  • 11 of 21
    Back View
  • 12 of 21
    Rear View Folded Down
  • 13 of 21

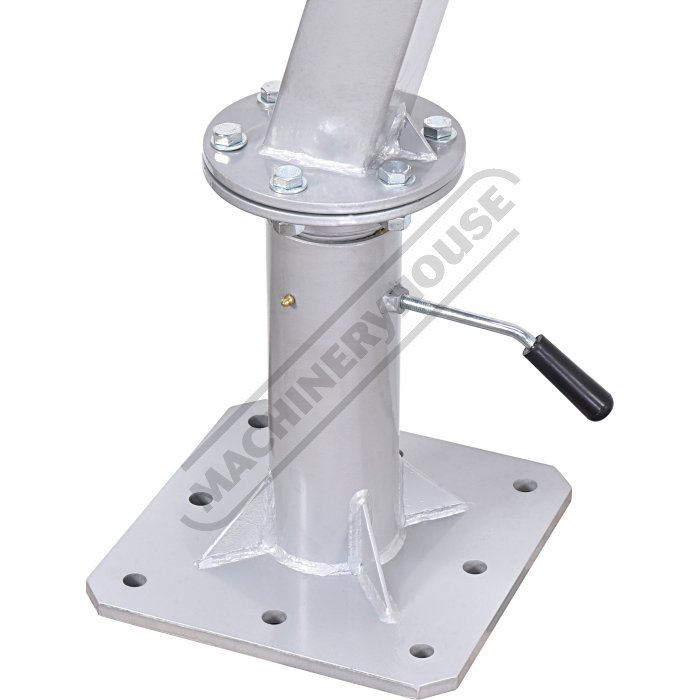

    Heavy Duty Base
  • 14 of 21
    Rotation Locking Lever
  • 15 of 21
    Hand Operated Rotation Handle
  • 16 of 21
    Fold Down Rotation Handle
  • 17 of 21

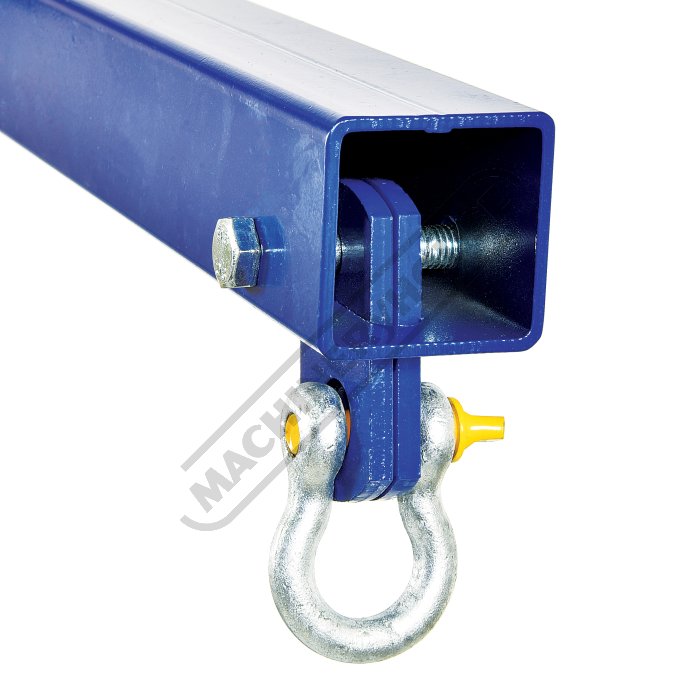

    Safety Hook
  • 18 of 21
    Manual Hand Operated Hydraulic Ram
  • 19 of 21

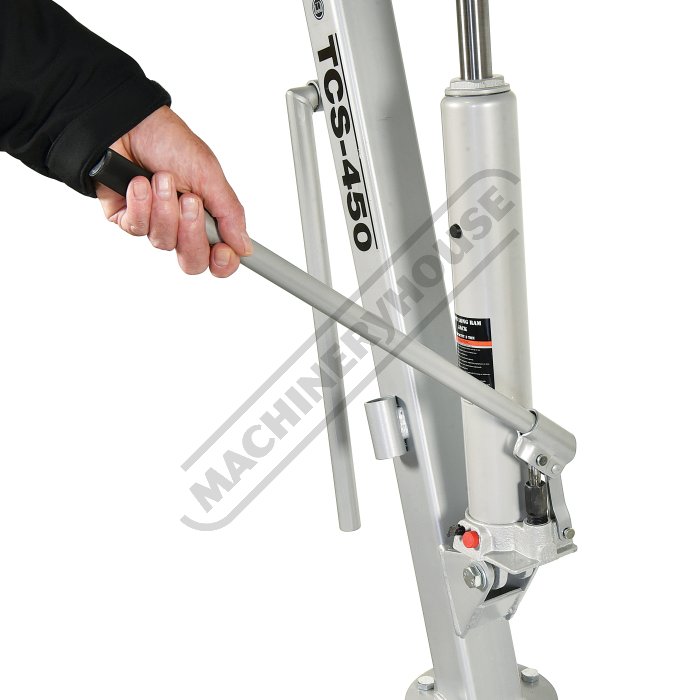

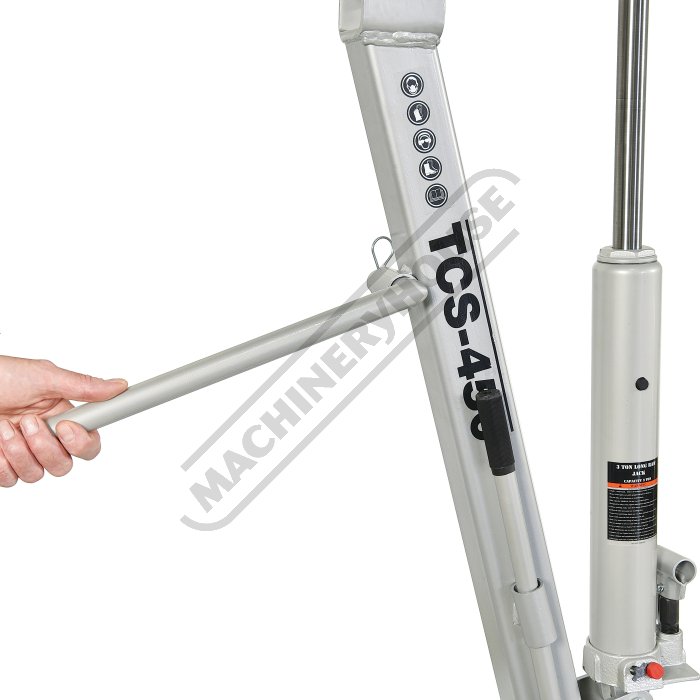

    Shown Pumping Up Hydraulic Ram
  • 20 of 21

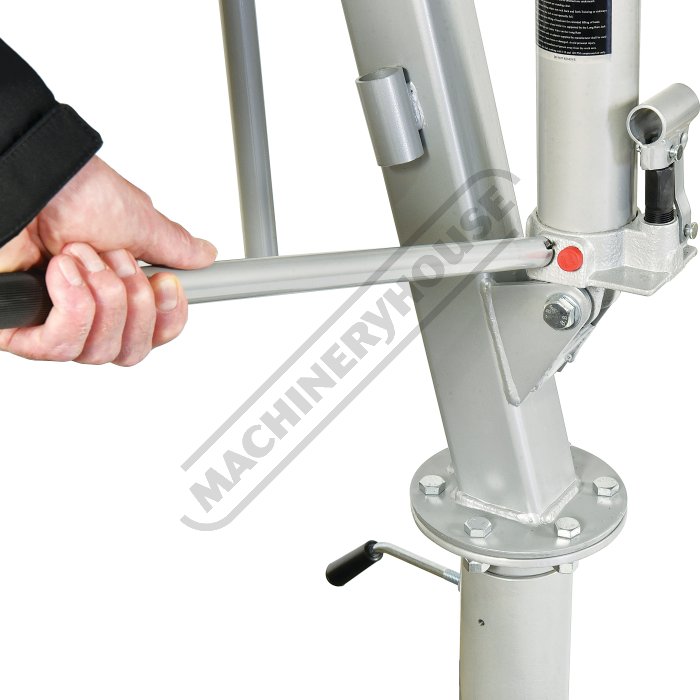

    Release Valve to Lower Ram
  • 21 of 21
    Hydraulic Ram System
Order Code: A353
TCS-450 - Swivel Crane -Truck or Ute
450kg Lifting Capacity
360° working angle
HAFCO
On Special - Ends 25th March 2017
ex GST
inc GST
$210.00
$231.00
$180.00
$198.00

ORDER CODE
A353
Model
TCS-450
Type
Hydraulic - Manual
Lifting Capacity - Maximum
450kg
Lift Capacity Pin Locations
450 & 230kg
Vertical Support
70 x 70mm
Extension Arm Support
70 x 70mm
Hydraulic Ram
3 tonne
Overall Height - Lowest Position
1350mm
Weight (nett)
50kg
Description
Keep it in your workshop, or the back of your ute or truck
Features
  • Heavy duty construction
  • 450kg & 230kg lifting positions
  • Manual hydraulic lifting pump
  • 360° continuous manual rotation
  • Safety hook with latch
  • 268 x 268mm base plate
  • Lifting height (Base to hook): 2100mm
  • Storage height folded (from base): 1350mm
  • 2 position telescoping boom: 450kg @ 950mm, 230kg @ 1380mm

Product Brochure
