HAFCOTJ-500
Swivel Transmission Jack - 4 Way Multi Tilt
  • 1 of 9
    A345
  • 2 of 9
    Fully Lowered
  • 3 of 9
    Fully Raised
  • 4 of 9
    Hand or Foot Pump Handle Within Release Valve
  • 5 of 9
    Complete With Safety Chains
  • 6 of 9
    Saddle Forward Tilt 38 Degrees
  • 7 of 9
    Saddle Backward Tilt 17 Degrees
  • 8 of 9
    Saddle Lateral Tilt Left 16 Degrees
  • 9 of 9

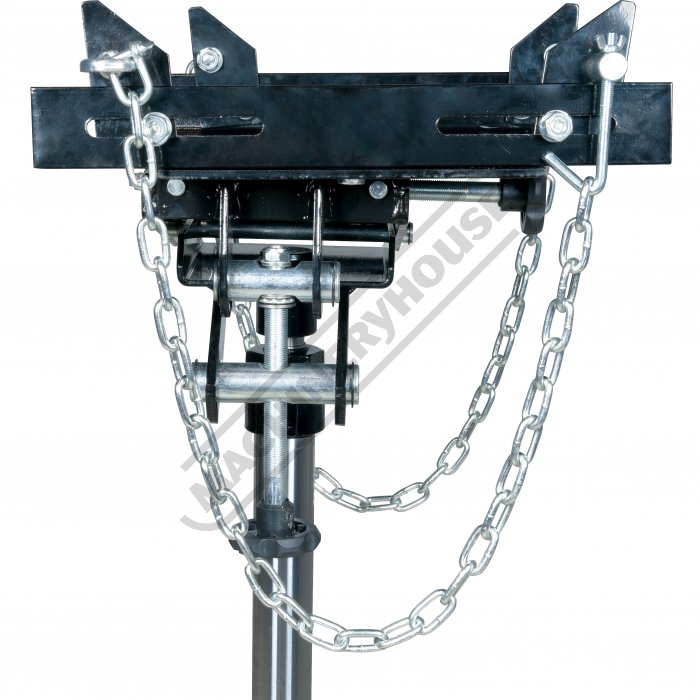

    Saddle Lateral Tilt Right 13 Degrees
Order Code: A345
TJ-500 - Swivel Transmission Jack - 4 Way Multi Tilt
Hydraulic Lift: 925 - 1870mm
500kg Capacity
HAFCO
ORDER CODE
A345
Model
TJ-500
Load Capacity
500kg
Tilting Type
4-Way Tilt
Forward ~ Backward Tilt Angle
38° Forward, 17° Backward
Left ~ Right Lateral Tilt Angle
16° Left, 13° Right
Minimum Lift Height
925mm
Maximum Lift Height
1870mm
Weight (Net)
64kg
Description
This 500kg capacity "Made for the Trade" Telescopic Transmission Lifter has a 4 way tilt transmission mounting cradle with adjustable load support arms to fit all transmission pan flanges. The foot-operated quicklift pump frees up operator's hands when positioning for lift and the hand operated lower lever provides safety with its extra slow lower control
Features
  • Safe working capacity: 500kg
  • Hydraulic 2 stage telescopic lift
  • 4-way tilt working head and transmission mounting plate/saddle
  • Saddle forward tilt: 38° & backward tilt: 17°
  • Saddle left lateral tilt: 16° & right lateral tilt: 13°
  • Hydraulic lift height range - 925mm - 1870mm
  • Top saddle/plate 360 x 275mm
  • Wide wheel base for improved stability & balance
  • Convenient foot pedal allows use of both hands on transmission during lift
  • Unique hand release lever provides extra slow control safety when lowering
  • Foot operated fast action dual pump & release valve
  • 4 x steel swivel castor wheels for easy rolling with full load capacity
  • Includes safety chains to secure gearbox or transmission
  • Includes extension lever for hand operating hydraulic lift
